Elephant Robotics®P Series
Versatile Assistant, Safe Helper
Universal / Agile / Cost Effective
For Comprehensive Industrial Application and Commercial Scenario
Working Radius
550/850mm
Repeatability
±0.05 mm
Payload
3/5kg
Elephant Robotics®P Series is a kind of universal 6-axis collaborative robots developed by Elephant Robotics, which has two versions of payload 3kg and 5kg (“P3/P5” for short). Adapted with various end-effectors, Elephant Robotics®P Series can complete various tasks, such as assembly, handling, testing, etc. Elephant Robotics®P3/P5 can meet the automation requirements of various industries like 3C, metal processing, scientific research, medical, auto industry and etc.
Agile and Universal
Cost Effective
Easy Programming
Collaborative and Safe
Universal and More Agile
With ingenious structure design, Elephant Robotics®P series have a ±360° working range, which are suitable for flexible manufacturing. Because of the modular design, types of spare parts are decreased and it is easier to change the joint if necessary. Much more convenient to install and maintain. What’s more, Elephant Robotics®P series have the advantages of compact structure, easy processing and flexible installation, so that you can easily integrate Elephant Robotics®P3/P5 into your existing production system without changing your production layout.
High Quality and Cost-Effective
Based on the strong cost controllability of Elephant Robotics, P series are high quality and cost-effective. Companies can enjoy a cost-effective, flexible, and safe automation solution for a wide range of production tasks. Upgrade your production lines with Elephant Robotics®P series can reduce enterprise production time and resource consumption. For example，the power consumption of P series is only 1/10 of traditional industrial robot.
Safe and Collaborative
Based on the efficient and exact collision detection algorithm, Elephant Robotics®P3/P5 can stop immediately when the slight collision is perceived. No need to install a protective barrier. Safety of personnel is guaranteed. Customized protection units are also accepted, such as Lidar, Light Curtains, etc.
Easy Programming，Open and Friendly

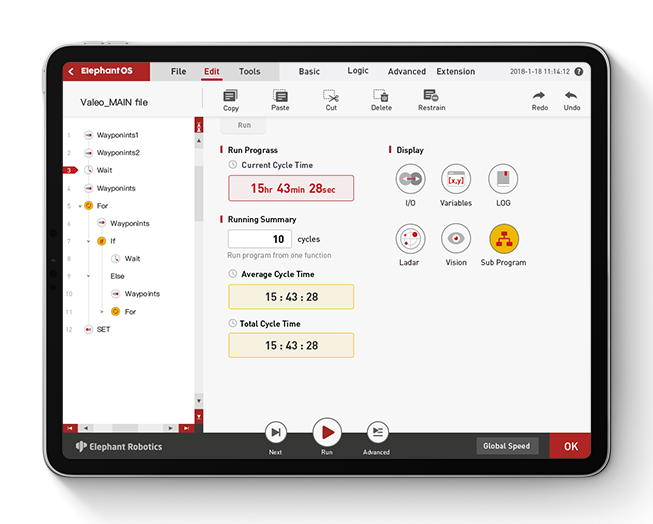

Elephant Robotics®P series are using the same operation system “RoboFlow” developed by Elephant Robotics：
- Operators with no programming experience can quickly set up and operate our cobots
- Simply move the robot arm to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet
- API can be integrated with any programming language, SDK: Python, C++, Java
- Offline programming and extension on ROS
- Supports various function modules, processing package is constantly updated
Operators with no programming experience can quickly set up and operate our cobots
Specifications
| P3 | P5 |
|
| Repeatability | ±0.05mm | ±0.05mm |
| Payload | 3kg | 5kg |
| Reach | 550mm | 850mm |
| Degrees of Freedom | 6 axis | 6 axis |
| Operating Temperature Range | 0-50℃ | 0-50℃ |
| Typical Power Consumption | 160W | 260W |
| Collaboration Operation | Test in accordance with: EN ISO 13849-1 PL d EN ISO 10218-1: 2011-Clause 5.4.3 | Test in accordance with: EN ISO 13849-1 PL d EN ISO 10218-1: 2011-Clause 5.4.3 |
| Programming Mode | Graphical programming | Graphical programming |
| Weight | 17kg | 24.5kg |
| P3 | P5 |
|
| Axis Movement Robot Arm Working Range | ±360° | ±360° |
| Axis Maximum Speed | J1/J2/J3：180°/sec; J4/J5/J6：208°/sec | J1/J2/J3：150°/sec; J4/J5/J6：208°/sec |
| Typical Tool Speed | 1m/sec | 1m/sec |
| P3 | P5 | |
| IP Classification | IP54 | IP54 |
| Noise | <70dB | <70dB |
| Robot Mounting | Any angle | Any angle |
| Dimensions Robot Base | 123mm×123mm | 123mm×123mm |
| Materials | Aluminium alloy, Rubber | Aluminium alloy, Rubber |
working range

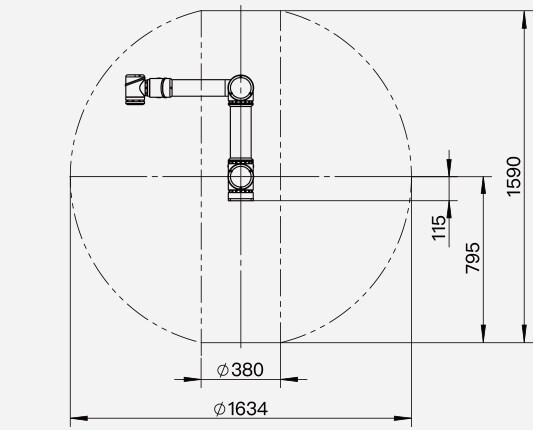

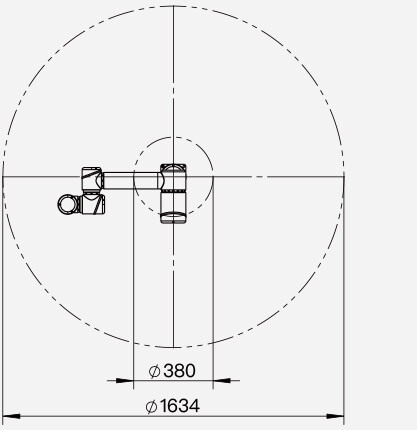

Elephant Robotics®P5
working range (mm)
Top view
Lateral view

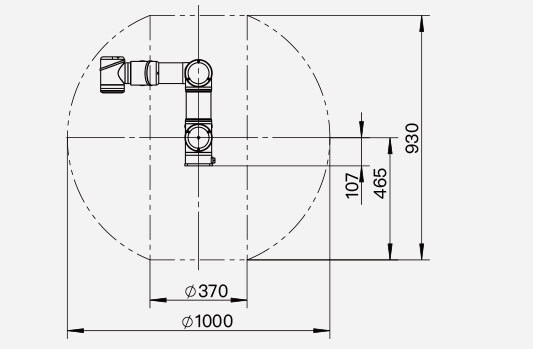

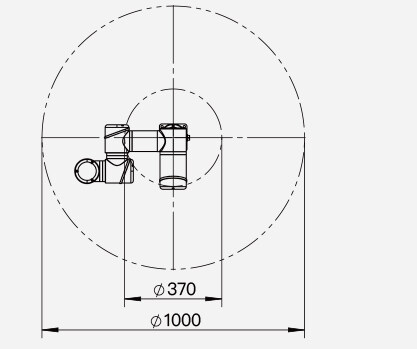

Elephant Robotics®P3
working range (mm)
Top view
Lateral view
INDUSTRIES
Elephant Robotics can help you achieve automation, improve your productivity, quality and safety level in a timely and cost-cutting manner.
3C electronics
Injection Molding
Pharmaceutical and Chemical Industry
Automobile Industry
Metal Processing
Education & Scientific Research
Outstanding Clients
We are happy to work and share creative vision with international partners such as:
DOWNLOADS
Elephant Robotics®P3/P5 User Manual
This manual describes the precautions for proper installation and use of the Catbot.
Elephant Robotics®P3/P5 Specifications
The technical specifications parameters of the Panda3/5.
RoboFlow Operation and Programming Manual
This manual describes the issues to be aware of when operating and programming a Robot.
